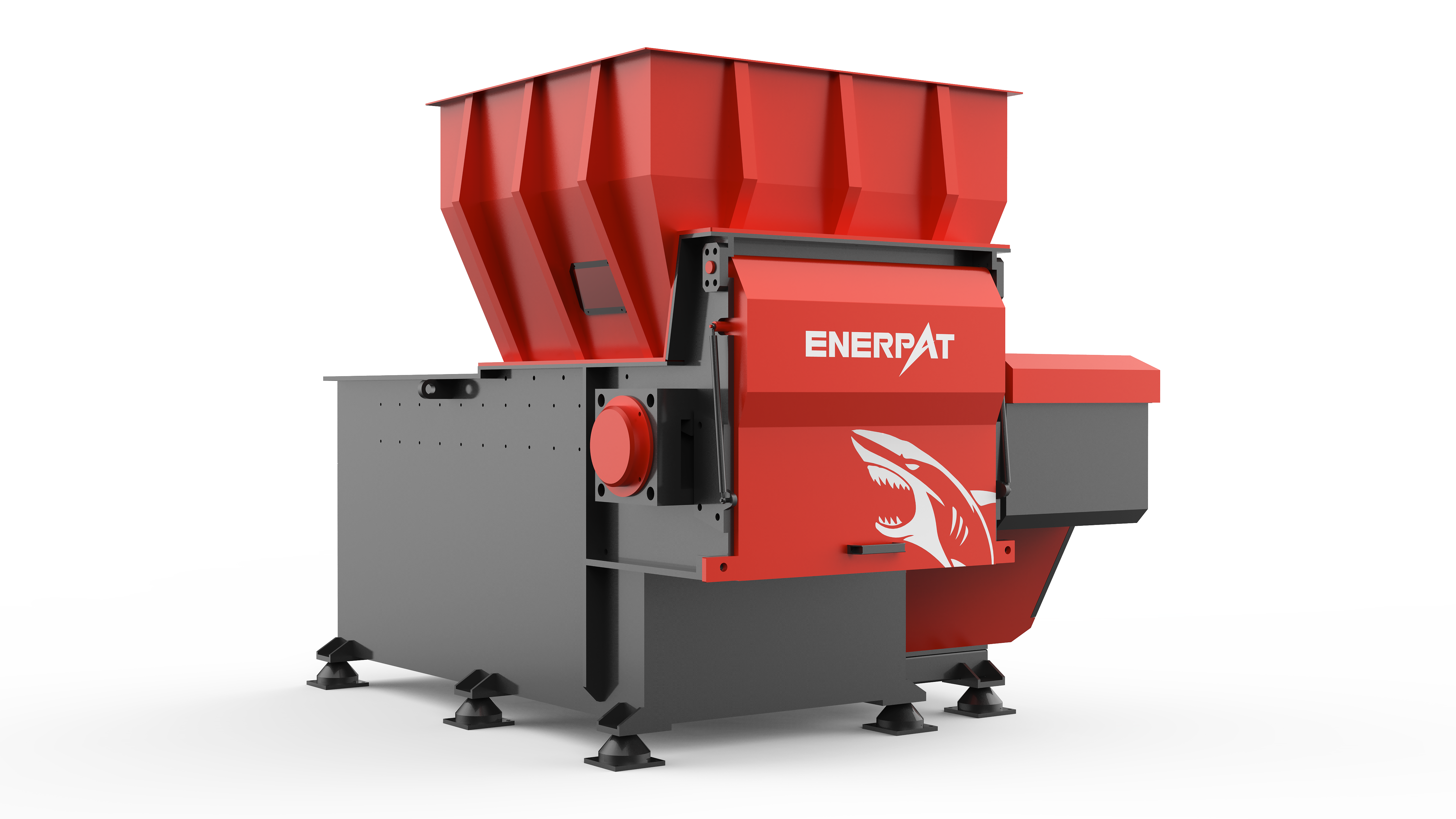

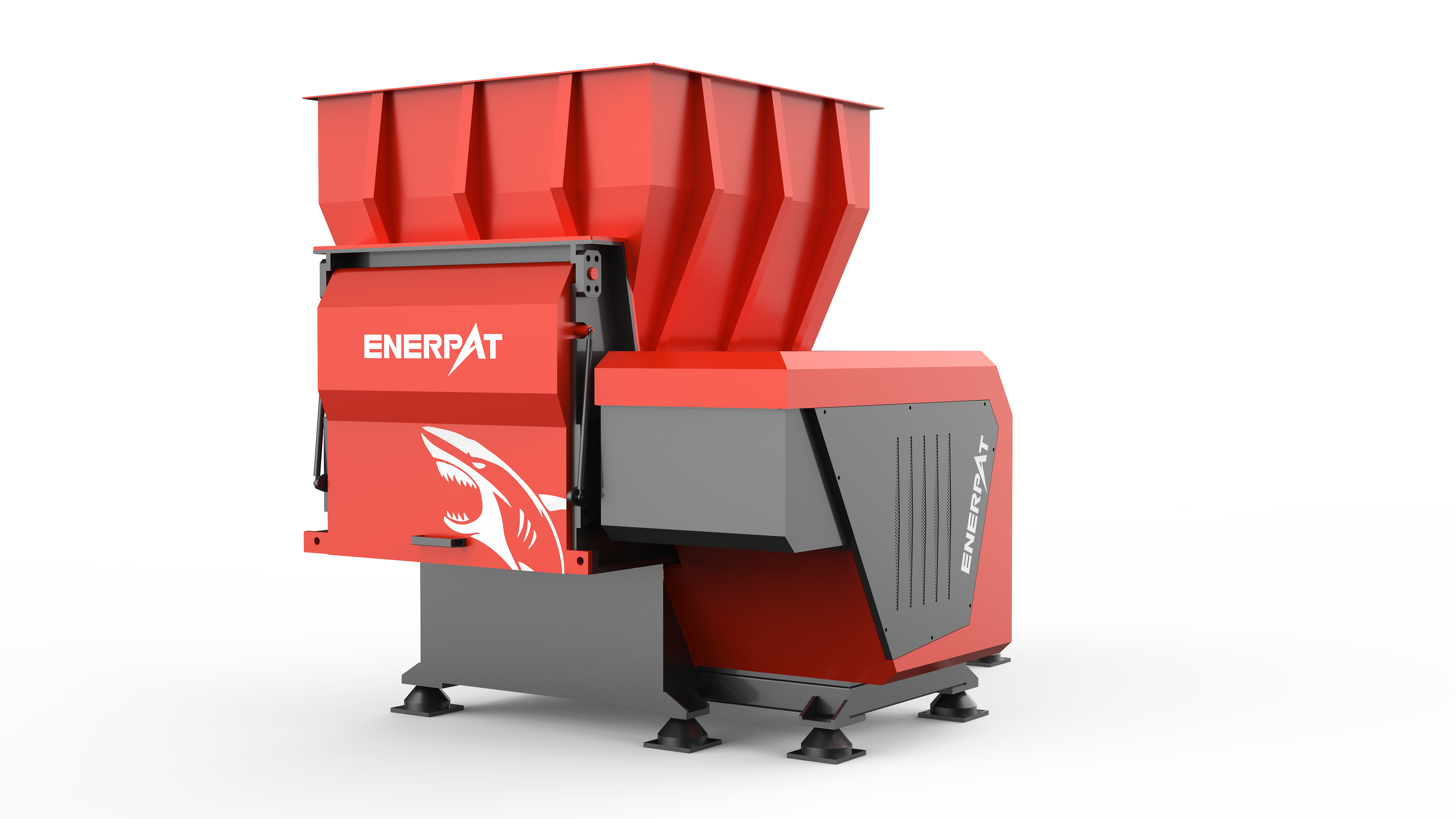

| ENERPAT Single Shaft Shredder The ENERPAT MSA-F Series single shaft shredder, also known as a one shaft shredder, single shaft grinder, or single rotor shredder, is a widely used shear-type crushing equipment. It is equipped with a PLC automatic control system, a large-capacity hopper, and a horizontal push system, which meets various crushing requirements and achieves high output. The entire machine has been certified by the EU CE, making it suitable for shredding resilient or medium-hard materials that are bundled into packs. |
Operating Principle
Material Feeding
The feeding box pushes the material toward the knife shaft under the drive of the hydraulic cylinder.
Material Crushing
The material is crushed through the mutual shearing between the moving knives and the fixed knives.
Screen Hole Size Determination
The crushed material is discharged through the screen, and the particle size of the output is determined by the screen holes.
Product Specification Sheet
| Model | MSA-F600 | MSA-F800 | MSA-F1000 | MSA-F1200 |
| Feeding Hopper(mm) | 800×600 | 1300×800 | 1300×1000 | 1300×1200 |
| Cutter Shaft Length(mm) | 600 | 800 | 1000 | 1200 |
| Discharge Height(mm) | 490 | 565 | 565 | 565 |
| Pusher Stroke(mm) | 500 | 815 | 815 | 815 |
| Rotor Knives(pcs) | 23 | 35 | 45 | 55 |
| Counter Knives(pcs) | 4 | 4 | 4 | 6 |
| Motor Power((kw) | 18.5 | 37 | 45 | 55 |
| Hopper Volume(L) | 760 | 1500 | 1760 | 2030 |
| Machine Size(L*W*H) | 1290×1820×1730 | 2800×1765×2080 | 2800×1980×2090 | 2800×2490×2135 |
| Machine Weight(kgs) | 1650 | 4000 | 4300 | 5300 |
| Model | MSA-F1500 | MSA-F2000 | MSA-F2800 |
| Feeding Hopper(mm) | 1300×1500 | 1675×2000 | 1900×2000 |
| Cutter Shaft Length(mm) | 1500 | 2000 | 2800 |
| Discharge Height(mm) | 565 | 720 | 720 |
| Pusher Stroke(mm) | 815 | 1100 | 1100 |
| Rotor Knives(pcs) | 70 | 95 | 216 |
| Counter Knives(pcs) | 6 | 8 | 5+5 |
| Motor Power((kw) | 75 | 150 | 220 |
| Hopper Volume(L) | 2430 | 5500 | 6500 |
| Machine Size(L*W*H) | 2800×2735×2135 | 3670×4374×2530 | 3705×5332×3146 |
| Machine Weight(kgs) | 5900 | 14500 | 21000 |
Material Testing
The ENERPAT MSA-F Series single shaft shredder, also known as a one shaft shredder, single shaft grinder, or single rotor shredder, is regarded as an industry-leading "black technology." With its advantages of fine particle size, low noise, energy efficiency, and high output, it effectively addresses various crushing challenges and assists customers in efficiently recycling high-value materials.
Joseph Marcantel
"The ENERPAT single shaft shredder has played a significant role in the waste processing at our textile factory. It not only handles various types of fiber waste with ease but also operates at extremely low noise levels, ensuring that it does not disrupt the production environment. The particle size of the crushed materials is uniform, greatly enhancing our recycling rate and truly achieving efficient resource circulation. We are very satisfied!"
Rashida H
"Since introducing the ENERPAT one shaft shredder, the waste processing efficiency at our plastic custom manufacturing plant has greatly improved. This machine not only has a fast crushing speed but also consumes low energy, resulting in significant energy savings. More importantly, the quality of the shredded plastic particles is high, making them ideal for reuse and saving us a substantial amount of costs in production. The ENERPAT single shaft plastic shredder is truly reliable!"
