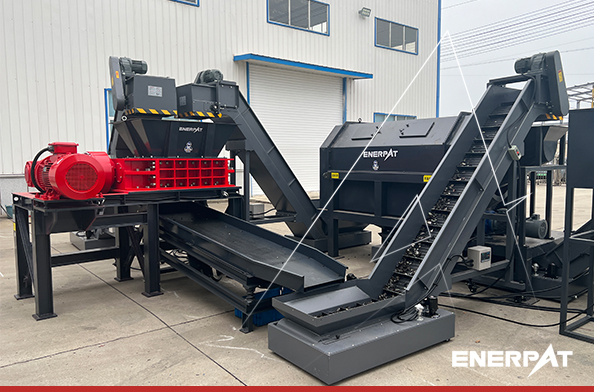

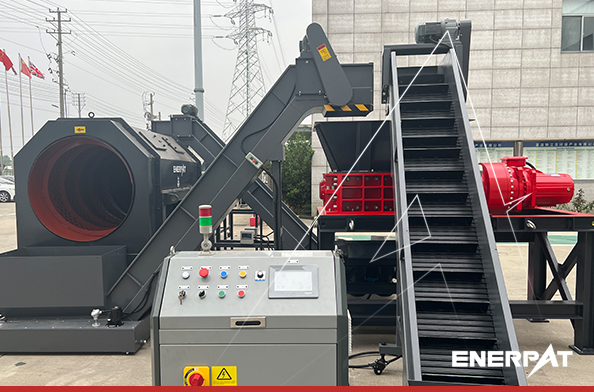

ENERPAT® Used Oil Filter Recycling Solution integrates both hardware and software with a modular design. The production line includes: conveying, crushing, magnetic separation, dust removal, and an automation control system. The oil filters are initially shredded into 60mm pieces by a four-shaft shredder, with a vibrating screen providing uniform feeding while separating the oil. The magnetic separator separates iron from paper, and the waste iron is crushed by a hammer mill, cleaned, and dried to produce pure iron, while the oil-soaked paper is de-oiled to yield dry paper.
Solution Background
With the rapid development of the automotive industry, the disposal of used automotive parts such as waste oil filters has become increasingly prominent. These hazardous waste products are difficult to degrade, and both landfill and incineration pollute the environment, making recycling urgent. The government has strict requirements for the recycling of hazardous waste, which makes the Used Oil Filter Recycling Solution particularly important.
The Oil Filter Recycling Plant designed by ENERPAT is specifically created for processing waste oil filters. It is highly automated, efficient, and energy-saving. It has been successfully installed in over a hundred companies and recycling stations in Europe, effectively recovering iron, waste oil, and filter paper, showcasing foresight and long-term sustainable value.
The steel chain conveyor belt is stable and robust, making it suitable for oil filters. It features a direct-drive motor and PLC control, allowing for variable speed adjustment based on the crusher's operating conditions.
Four Shaft Shredder
Pre-shred the oil filter. The equipment has a large shear force and can handle all kinds of tough and ductile waste. It is equipped with a screen to control the size of the discharge.
Horizontal Shredder
The metal is crushed efficiently by hammering, making it easy to purify scrap iron. The hammer head is made of special materials and technology, and its hardness and wear resistance are significantly improved.
Drum Magnetic Separator
Iron metals flowing into the magnetic field area are attracted to the drum, and as the drum rotates, they are carried out, while impurities are separated and discharged.
Vibrating Feeder
Provides uniform vibrating feeding and collects oil droplets. It features smooth operation, durability, and low energy consumption.
Dust Collector
Features an automatic pulse filter cartridge system for effective dust cleaning. It offers high dust removal efficiency and centralized dust collection, improving the working environment.
Application Industry
Automotive Industry
Automotive Industry
Aerospace Industry
Aerospace Industry
Commercial Manufacturing
Commercial Manufacturing
Industrial and Heavy Machinery
Industrial and Heavy Machinery
FAQ
What types of oil filters can the ENERPAT Used Oil Filter Recycling Solution handle?
It can process various types of used oil filters, including engine oil filters, diesel filters, and gasoline filters.
What is the level of automation in the ENERPAT oil filter recycling line?
The system is highly automated, requiring minimal manual intervention, and features a PLC automation control system.
Is the process environmentally friendly?
Yes, it has a fully sealed design and a negative pressure dust removal system to ensure a dust-free operation that complies with environmental standards.
What is the production capacity of the oil filter shredding line?
The capacity can be customized based on customer requirements, and multiple machines can be operated in parallel to meet large-scale recycling needs.
How do you ensure the equipment operates reliably over time?
We provide comprehensive technical support and training services, along with regular inspections and maintenance, to ensure customer satisfaction.
